  NERIKI产品汇总
DS-3H Pneumatic-type Springless diaphragm Stainless steel valves
DS-3H 气动无弹簧隔膜不锈钢阀

NERIKI DS-3H valves are carefully designed to obtain particle-free,superior air tightness,super-clean
product.
This design,in turn prevents gas leakage and minimizes the dead space area.
NERIKI valves are manufactured with the advanced technology as well as the high quality control
systems currently available.
The valves are assembled in NERIKI high tech clean room assembly (class 10) and all valves are inspected,at all levels,with a Helium leak detector apparatus to 10atm cc/sec.
During transportation of cylinders,when Actuator or Handhwheel is removed from the valve,the DS-3H has an internal locking mechanism which assures safety.

NERIKI设计的DS-3H是为了满足无颗粒,高气密性和超纯净的应用的阀门。设计中考虑防止气体泄漏并最小化滞留区面积。
NERIKI的阀门的制造加工采用目前新科技和高级别质量控制系统。
NERIKI的阀门在NERIKI高科技洁净厂房内(10级净化厂房)进行组装且每颗阀门都被严格检查,氦检探测仪级别为10atm cc/sec
在钢瓶运输途中,当阀门驱动器或者手轮被拆除的情况下,DS-3H阀门会被内部的机械锁封闭以确保安全。

NERIKI气动隔膜阀
日本NERIKI阀
NERIKI阀

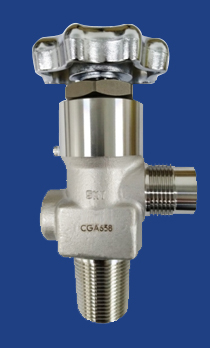

DSP-21 type Manual stainless steel valves
DSP-21手动不锈钢阀门

This series of NERIKI stainless steel valves,are the most popular,and are widely used in Japan,Korea and other Asian countries.with this series We have gained a good reputation in the semiconductor industry.Since the introduction of this valve on the market,we have supplied around 200,000 valves and enjoy a high reputation.

这个系列的不锈钢阀门是大众化的产品,被普遍的应用在日本,韩国以及其他亚洲国家。依靠这一系列的阀门,NERIKI公司被认作是应用半导体行业阀门制造商的代表。从阀门进入使用应用到现在,NERIKI提供了大约200,000颗产品,且获得了很高的声誉。

NERIKI钢瓶阀

2X10sealing integrity
    2X10密封完整

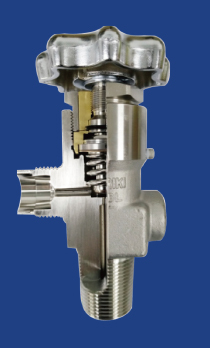

Gland section with double-seal structure
    凸台部分有双侧密封结构
DISS outlet is available
    可以配置DISS出口
NERIKI阀
Assembled in NERIKI high tech clean room(class 10)
    10级净化厂房内组装
Precision-machined finish for internal surface is less than R-max 4μm,and up to R-max 0.4μm is also available upon specific request
    内部表面精加工精确到小于R-max 4μm,在依据要求的情况下可以实现小于0.4R-max 4μm的表面精度
Packaged individually in nitrogen-sealed Polyethylene bags to eliminate dust
    用独立,氮气填充的聚乙烯包装隔绝灰尘污染
NERIKI well designed construction has taken into account minimum particle generationa
    NERIKI的设计已经充分考虑到最小的颗粒生成可能
